Ankle & Foot
Evidence: suggestive
Figure-Eight Measurement Special Test
Orthopedic Physical Examination & Clinical Assessment Guide
What is it used for?
- Reliably quantifying ankle swelling (edema).
How to Perform
- Position: Patient sits with the ankle in a neutral position.

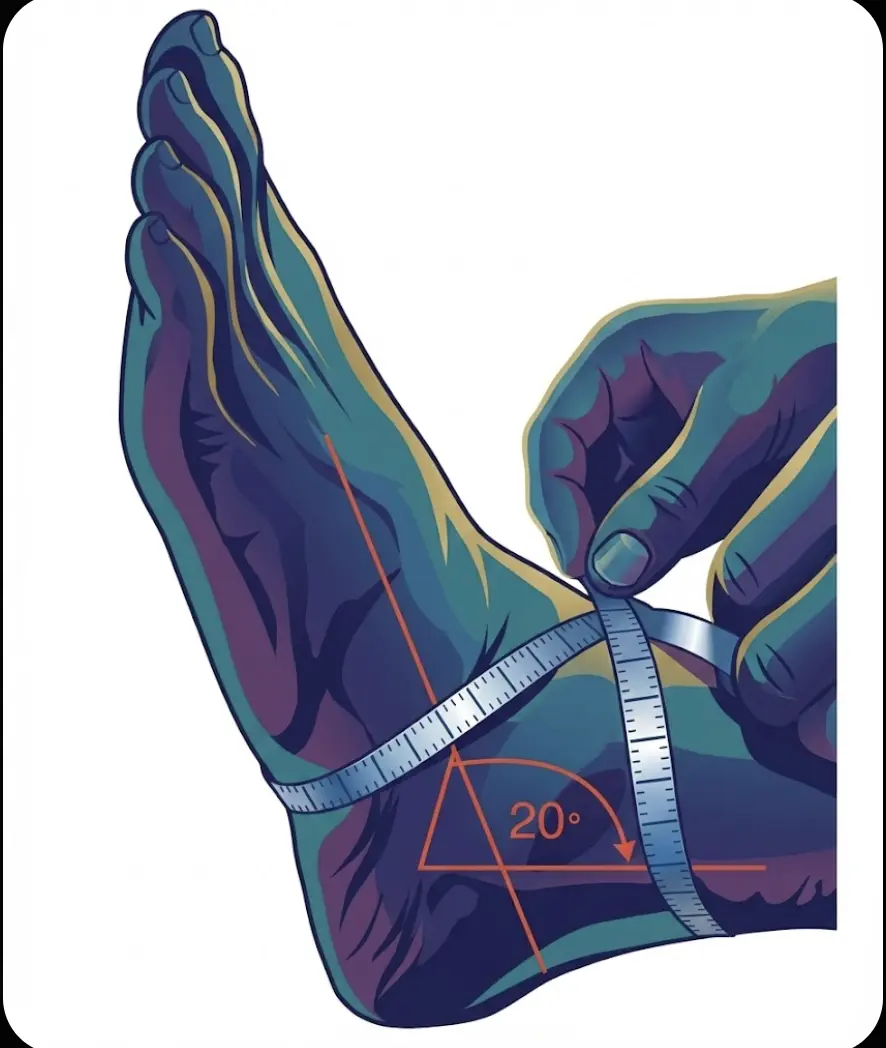

- Action: Wrap a tape measure around the ankle in a specific order:
- Start at the Tibialis Anterior tendon.
- Go to the distal 5th metatarsal base.
- Cross over the Navicular tuberosity.
- Pass below the lateral malleolus.
- Pass below the lateral medial malleolus and back to the start.
Interpretation of Results
- Positive: A measurable difference (e.g., > 1-2 cm) compared to the uninjured side indicates significant swelling.
Diagnostic Accuracy
- Reliability: High (ICC = 0.99).
Clinical Context & Limitations
The Figure-Eight Measurement should be considered as one component of a comprehensive musculoskeletal assessment. No single special test has perfect diagnostic accuracy; thus, clinical decision-making should integrate test results with patient-reported symptoms, mechanism of injury, functional impairment, and relevant imaging.
Clinicians should be aware of potential false-positive results in patients with pain sensitisation, muscle guarding, or poor relaxation. For the Ankle & Foot region, combining the Figure-Eight Measurement with complementary examination tests significantly improves overall diagnostic confidence.
References
- Magee, D. J. (2021). Orthopedic Physical Assessment (7th ed.). Elsevier.
